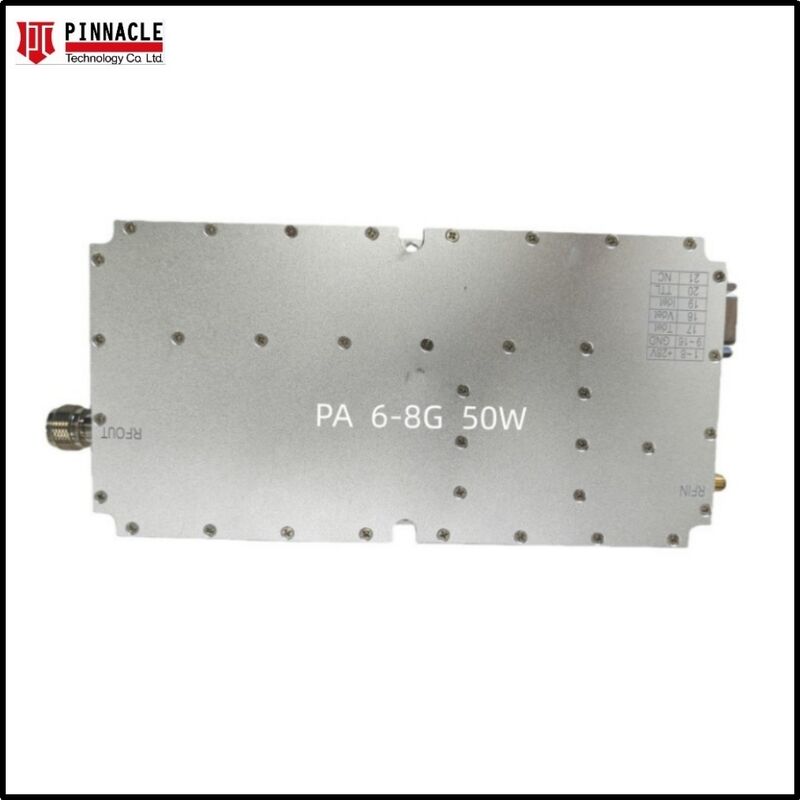

RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement

お問い合わせ

ビデオ

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications

お問い合わせ

ビデオ

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

お問い合わせ

固体状態 200W 高功率 2.4G 増幅器

お問い合わせ

送信

今接触

製品説明

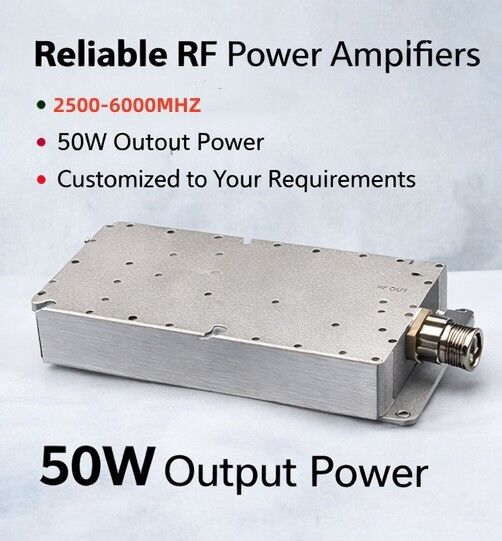

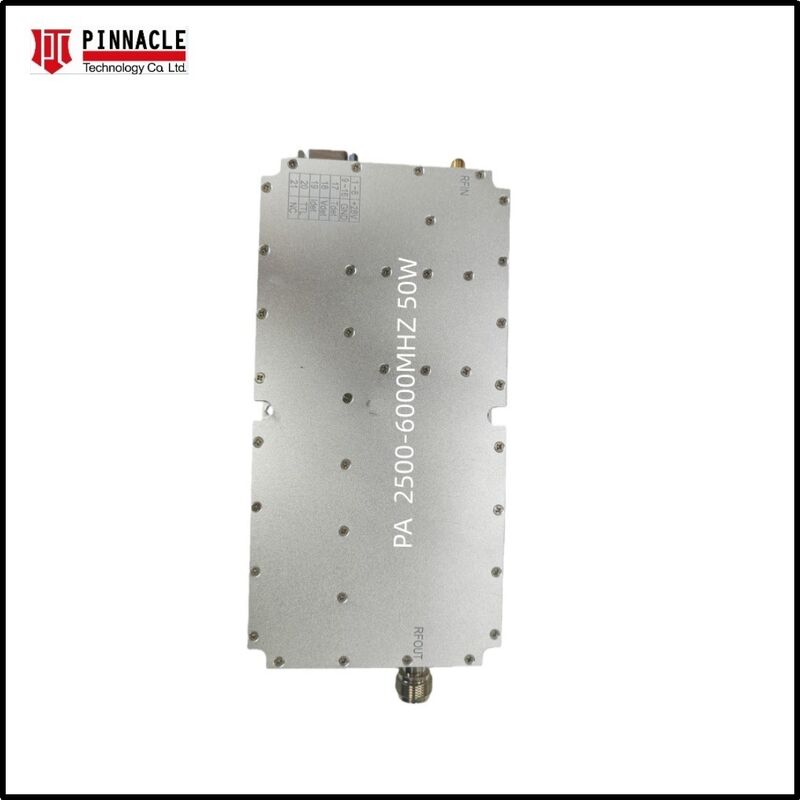

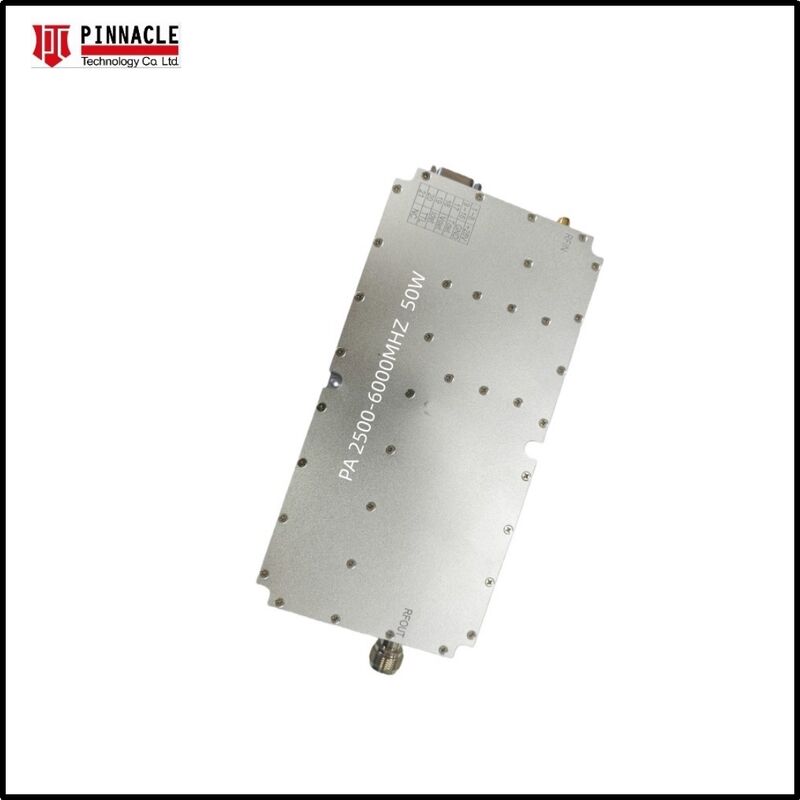

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power

This 2500-6000MHz RF Module is a 50W power amplifier module designed for 5G, WiFi 6, satellite, and radar system applications. The module operates without requiring an external signal source.

Key Features

Ultra-Wideband Performance: Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers
Advanced GaN Technology: Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management
Built-in Protection: Includes integrated circuitry for over-temperature protection and VSWR (Voltage Standing Wave Ratio) protection to prevent damage from signal reflection
Compact & Rugged: Housed in a precision-machined aluminum alloy chassis, designed to withstand harsh industrial and military environments
Customizable: Frequency range and output can be customized per request

Applications

Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
Test & Measurement: A reliable lab-grade power source for EMC testing and antenna measurements
Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection

Technical Specifications

Parameter	Specification
Frequency Range	2500-6000MHz
Output Power (P_sat)	≥50W
Gain	≥50dB
In-band Gain Flatness	≤5.0dB
Working Current	≤5.5A
Connector	SMA-Female
Power Supply & Control Interface	DB7W2
VCC Power Supply & Maximum Voltage	+28V, +32V
Dimension	180×90×25mm (Not including connectors)
Net Weight	1kg
Power Supply Wire	Red+Black+Enable wire
Working Temperature	-40℃ to +55℃
