起源の場所:
中国深セン
ブランド名:
PTC
証明:
ISO 9000
モデル番号:
PTC-HPA1.2G-800W

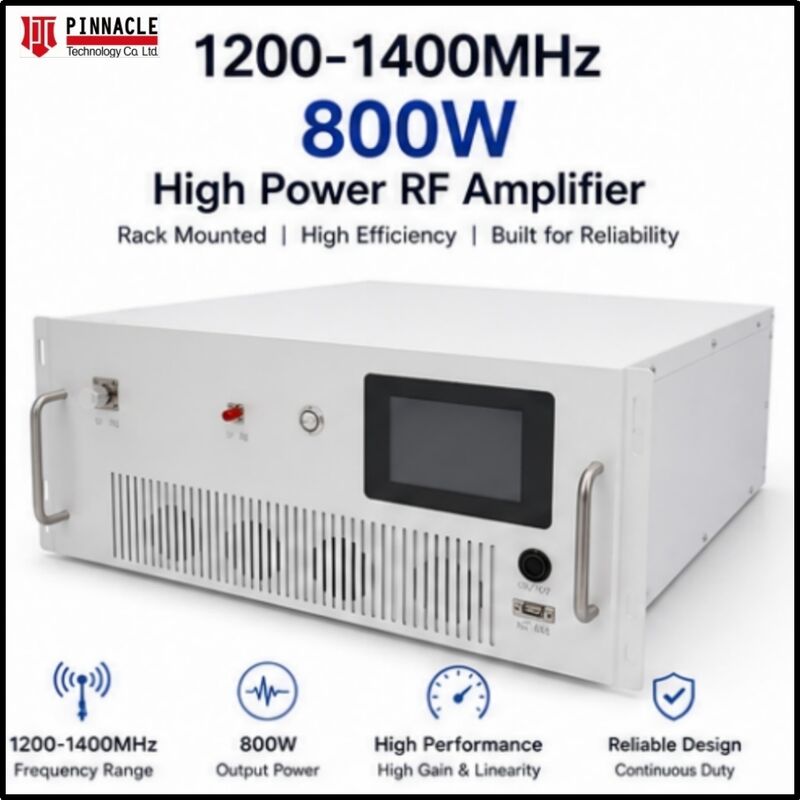

The 1200-1400MHz 800W High Power RF Power Amplifier is engineered for demanding RF transmission systems requiring exceptional output power, stability, and continuous-duty performance.
Built with advanced LDMOS power devices and an industrial-grade rack-mounted chassis, this amplifier delivers excellent linearity, high efficiency, and long-term reliability for professional RF applications.
Whether integrated into communication systems, RF laboratories, EMC testing, or industrial RF equipment, this amplifier provides consistent performance even under harsh operating conditions.
| Frequency Range | 1200-1400 MHz |
| Output Power | 800 W |
| Gain | 58-65 dB (Optional) |
| Gain Flatness | ±1 dB |
| Input Power | 0~10 dBm |
| Harmonics | ≤ -15 dBc |
| Spurious | ≤ -60 dBc |

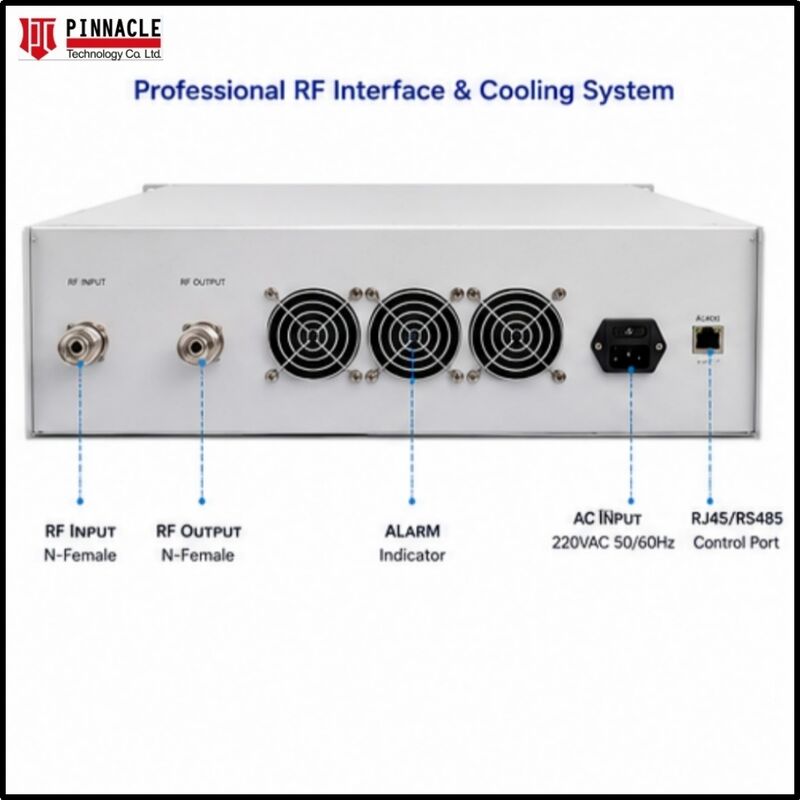

| Output Connector | N Female / DIN (Optional) |
| Input Connector | N Female |
| Impedance | 50 Ω |
| Power Supply | AC220V / AC110V Optional |
| Cooling | Intelligent Forced Air Cooling |
| Operating Temperature | -20℃ to +55℃ |
| Protection | Over Temperature, Over Current, Over Voltage, High VSWR |
| Control | LCD Touch Screen |
| Chassis | 19-inch Rack Mount |
Multiple protection mechanisms safeguard the amplifier against operational hazards, significantly extending equipment lifespan:
Designed according to standard 19-inch cabinet dimensions for seamless installation in various professional environments:
Engineered for 24/7 uninterrupted operation, ensuring long-term reliability under heavy workloads and demanding industrial applications.
Signal enhancement for communication infrastructure and network systems.
Ideal for laboratory research, development, and RF performance evaluation.
Supports electromagnetic compatibility testing in certified laboratories and compliance facilities.
Provides high-power RF output for industrial automation, process control, and wireless control systems.
Used by universities, research institutes, and engineering laboratories for advanced RF experiments.
Suitable for professional RF testing, communication integration, and defense-related projects.
PTC specializes in high-power RF equipment with years of engineering experience and technical expertise.
No middlemen. Competitive pricing. Fast delivery and direct manufacturer support.
Customized solutions available for:
Every amplifier undergoes comprehensive testing before shipment:
PTC products have been successfully deployed in government agencies, telecom operators, EMC laboratories, universities, and industrial wireless systems across Middle East, Southeast Asia, Africa, South America, and North America.
Yes. We support custom frequency bands from VHF to 6GHz to meet specific application requirements.
Yes. Available output power options include:
Yes. OEM branding, customized chassis, logo printing, software interface customization, and specialized packaging are all available.
Yes. It is specifically designed for 24/7 continuous industrial operation under demanding conditions.
The amplifier includes comprehensive protection systems:
